Scanned Model of Fort Denison

Scanning & Modelling

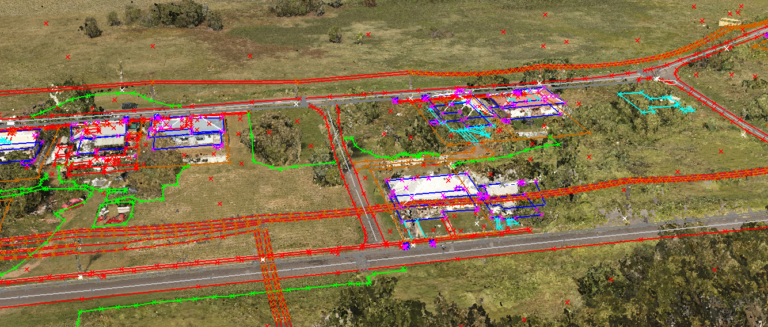

Our team employs cutting-edge equipment to quickly deliver 3D models with precise millimetre accuracy to support engineers, architects and builders.
Expertise includes: As-built surveys, Heatmaps, Wall plumbness, Level & Detail Surveys.

Service Locating & Monitoring

Sample of our Work: Precise Model of a Brewery

Projects

Al-Madina Mosque Leppington | NSW

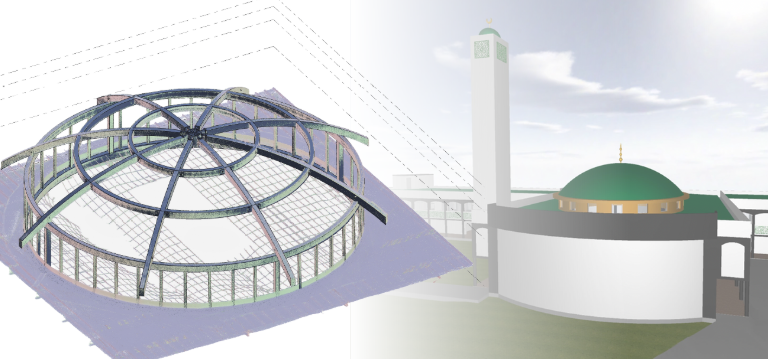

Details: Engaged to scan the structure and prepare an accurate model of the dome.  In order to build the dome correctly, we were required to create an exact model of the dome and its positioning on top of the roof.

Total Solution:  We modelled the dome in order to get precise steel positioning which helps the structural design and verifies its integrity. We calculated the quantities of steel elements and undertook tolerance checks to determine if the steel had been bent and if it was within the tolerance limits of the design.

Royal Botanic Gardens Sydney

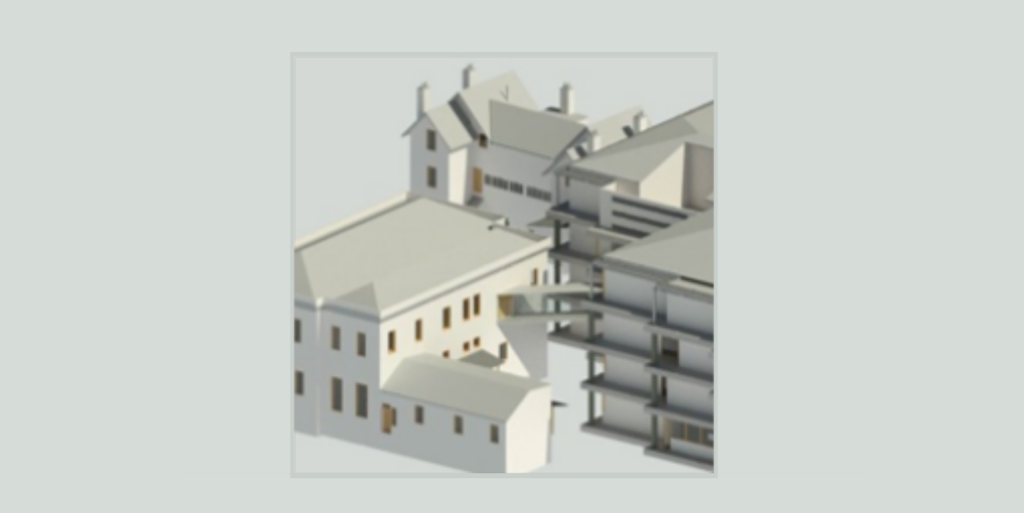

Details: Created a 3D Point Cloud and Revit Model of the historic Royal Botanical Garden building as part of an interior renewal project. Purpose of the scanning work was to easily and accurately capture the interiors of the Brown Building and the heritage listed Anderson, Cunningham and Cottage buildings.

Total Solution: Utilising BIM Methodology, the structure was extensively scanned and quality checked with our high tech equipment. Our expertise enabled us to deliver extensive 3D models cost effectively and quickly.

Chifley Square Sydney
5923283-IMG_0223_1741663330029
2907039323-IMG_0224

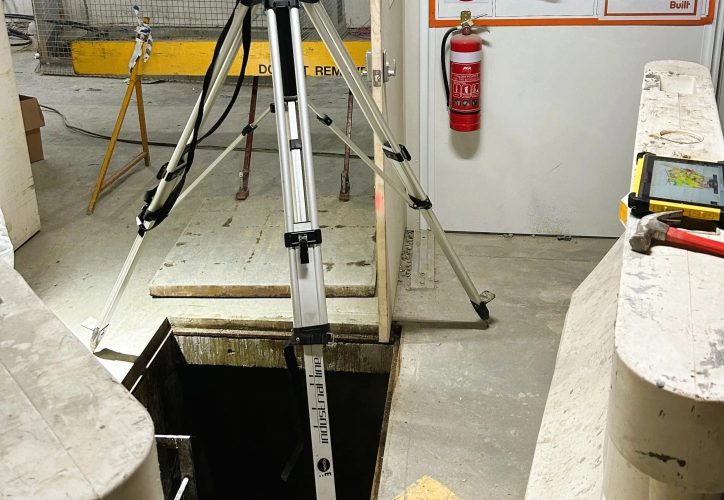

Details: Traditional surveying and locating methods could not be used, so we utilised laser scanning technology to capture and model the deep underground well and its location.

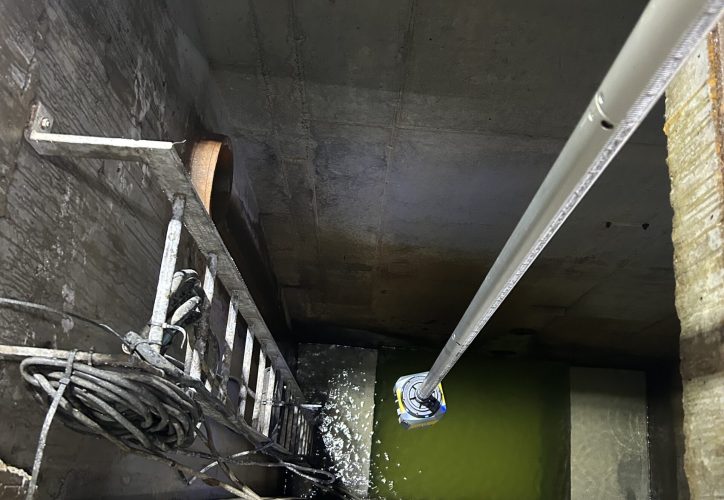

Total Solution:  We found an innovative method to invert the scanner in order to collect the data in the well, and calculate the offsets and the verticality of the well. We also calculated the RLs and checked that they were within tolerances

Links to Our Other Scanning Projects

Chullora Train Depot NSW
Petersham Public House (Brewery) NSW

Medlow Bath Station NSW

Quality Assurance & Safety

Accredited ISO9001 Quality Management System
Accredited ISO45001 Occupational Health & Safety Management System

We understand the importance of providing the highest quality surveying services to ensure projects are completed professionally and on time.  We achieve this through staff training and having a dedicated team member who continuously monitors and reviews our QA.

We have a comprehensive Quality Management Plan and OH&S Management System that facilitate us in maintaining AEO and ISO accreditations.
